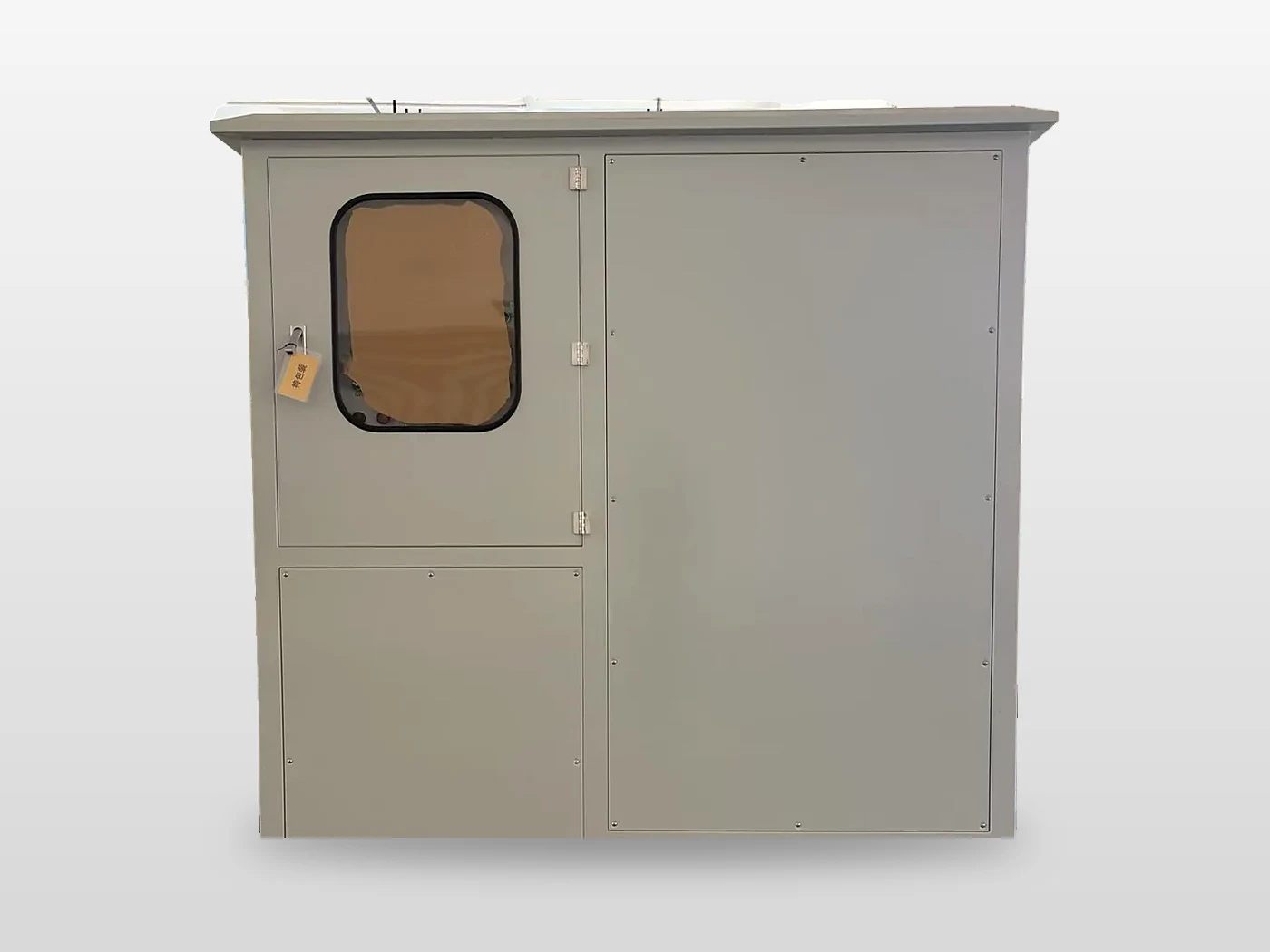

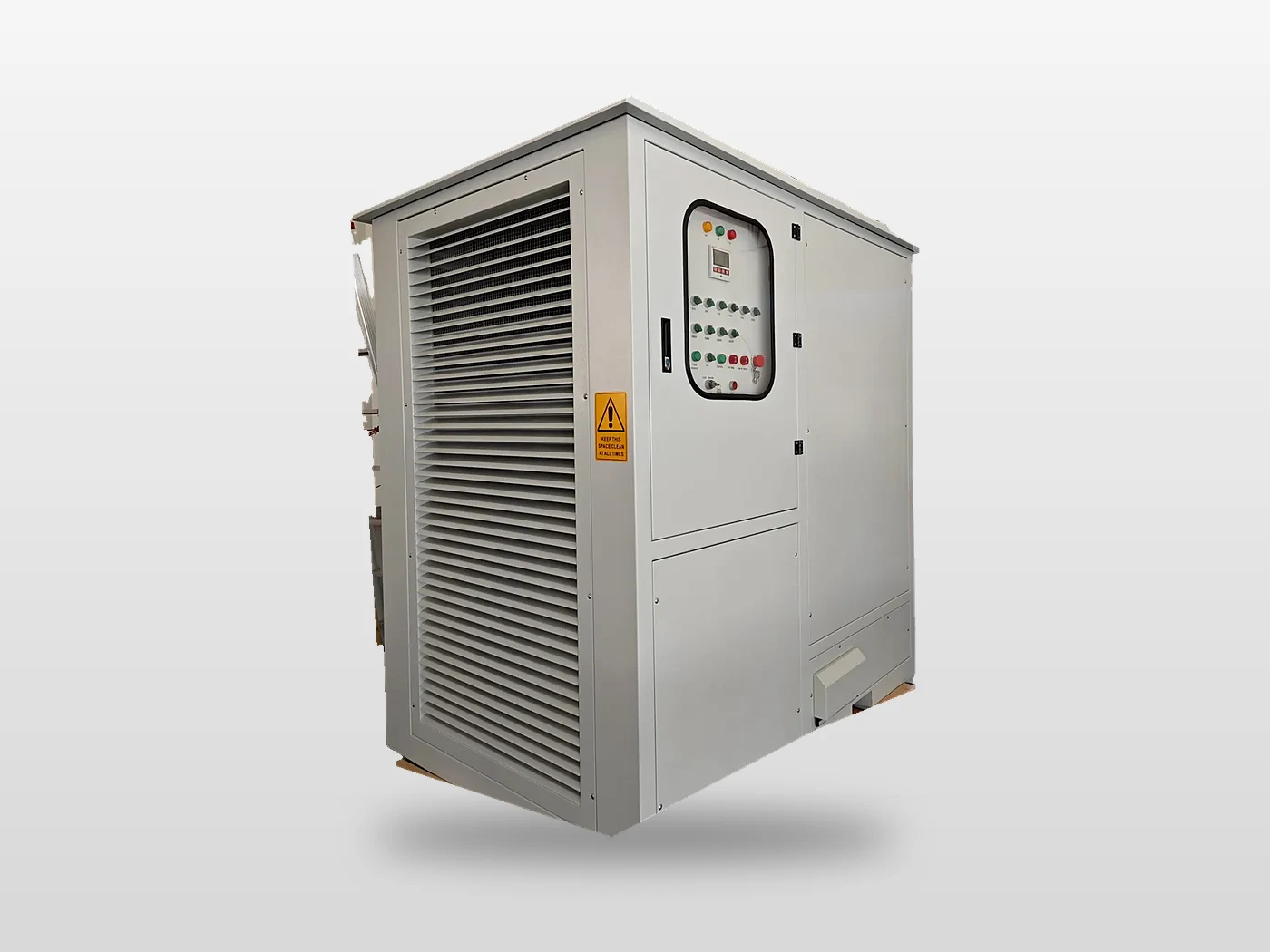

Load bank 1 MW
For testing large backup generators, for example in data centres, hospitals and industry. Connects with copper bars and is moved by forklift.
Price example SEK 500,000model S1000L
Price example for the standard configuration, excl. VAT and freight. Installation not included. Options and other configurations are quoted, with freight to your address.
1000 kWat 400 V
1 kWsmallest step
2000 kgmoved by forklift
IP54control cabinet
Why own a load bank
Test with real load
Load the generator step by step up to full power, without touching the building's supply.
Easy to control
Push buttons on the unit or remote control from a PC. Test when it suits you.
Built for hard use
Thermal cut-out, air flow switch, fan overload protection and emergency stop.
Specifications
- Capacity
- 1000 kW at 400 V (900 kW at 380 V)
- Manufacturer
- DR Technology
- Steps
- 1 + 2 + 2 + 5 + 10 + 10 + 20 + 50 + 100 + 100 + 200 + 500 kW (1 kW resolution, customisable to order)
- Voltage
- 400 V AC, 50 Hz, 3 phases, TN-S 5 wire (standard). 600 V, 800 V and others to order
- Tolerance
- voltage ±5%, load elements ±3%
- Insulation test
- 500 V AC
- Connections
- copper bars
- Cooling
- forced air, approx. 720 m³/min, horizontal airflow
- Control
- push buttons on the unit, remote control via software
- Control voltage (optional)
- 415 V / 480 V, 3 phases
- Protection
- thermal cut-out, air flow switch, fan overload, emergency stop, 3-pole contactors
- Operating temperature
- −20 to +50 °C
- Altitude
- up to 2000 m
- Control cabinet rating
- IP54
- Dimensions (L × D × H)
- 2230 × 1430 × 2068 mm
- Weight
- 2000 kg
- Handling
- 2 forklift pockets
- Customisation
- voltage, step layout, control, connections and enclosure to your specification
Request a quote
Tell us what you need to test. We reply within one business day with a price including freight to your site.
- Help choosing the right size
- Short lead time
- Reply within one business day
