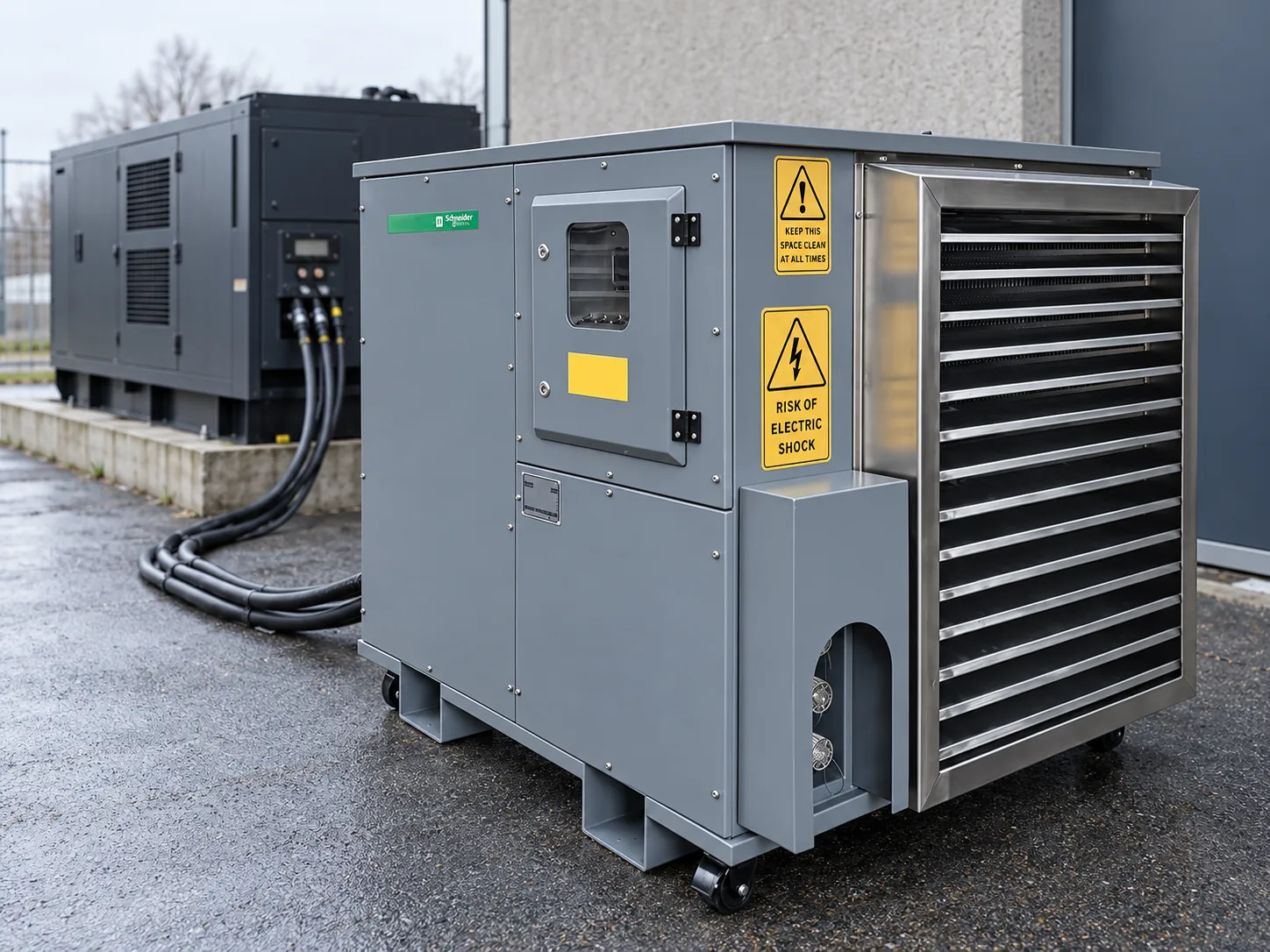

Load bank 265 kW
For testing UPS systems and mid-size backup generators. Compact and on wheels. The B265L is part of the Schneider series.
Why own a load bank
Test with real load
Load the generator step by step up to full power, without touching the building's supply.
Easy to control
Push buttons on the unit or remote control from a PC. Test when it suits you.
Built for hard use
Thermal cut-out, air flow switch, fan overload protection and emergency stop.
Specifications
- Capacity
- 265 kW
- Series
- Schneider series
- Model
- B265L
- Voltage
- 400 V AC, 50 Hz, 3 phases (standard). 600 V, 800 V and other voltages to order
- Steps
- 1 kW smallest step (standard). Step layout customised to order
- Control
- push buttons on the unit, remote control from a PC
- Protection
- thermal cut-out, air flow switch, emergency stop
- Dimensions (W × D)
- approx. 1478 × 1160 mm
- Height
- Request datasheet
- Weight
- approx. 295 kg
- Handling
- on wheels
- Country of origin
- China
- Customisation
- voltage, step layout, control, connections and enclosure to your specification
Request a quote
Tell us what you need to test. We reply within one business day with a price including freight to your site.
- Help choosing the right size
- Short lead time
- Reply within one business day
