Rack-mounted load banks

For data centres that need to test UPS and cooling before the servers arrive. The load bank mounts in a standard 19-inch rack and gives heat like a real server load.

Request a quoteSee specifications

Why a rack-mounted load bank

Test UPS and cooling

Load the UPS and the cooling step by step before the servers are in place. You see if the site handles full load.

Heat like the server hall

The load bank sits in the rack and gives heat like a real server load. You see how the air moves in the hall.

Easy to move and mount

Standard 19-inch size. Several units can be mounted in the same row.

Models and specifications

ModelVoltageStepsCoolingSize W × D × HWeight
3 kW230 V, single phase0.5 + 0.5 + 1 + 1 kWForced airRequest datasheetRequest datasheet
5 kW230 V, single phase, 50 Hz5 × 1 kWForced air, 2 fans483 × 651 mm (height: request datasheet)26 kg
6 kW (RM-6)2 × 230 V, single phase, 50 Hz0.5 kW4 fansRequest datasheetRequest datasheet
7 kW, dual supply (RM-7D)2 × 230 VRequest datasheet4 fans483 × 678 × 253 mm20 kg
7 kW, single supply230 V, single phase, 3 inputs0.5 + 0.5 + 3 × 2 kWForced airRequest datasheetRequest datasheet
9.5 kW (RM-9.5)230 V, single phase, 50/60 Hz9 steps4 fans483 × 652 × 355 mmRequest datasheet
10 kW (RM-10D)400 V, 60 HzRequest datasheetRequest datasheet483 × 660 mm (height: request datasheet)max 30 kg
12 kW230 V, single phase, 6 inputs12 × 1 kWForced airRequest datasheetRequest datasheet
18 kW400 V, 3 phase, 50/60 Hz3 × (1 + 2 + 3) kWForced air, 10 fansRequest datasheetRequest datasheet
50 kW (water-cooled)415 VRequest datasheetWater-cooled (DN32)Request datasheetRequest datasheet

Dimensions in mm. We only list confirmed values. Where it says “request datasheet”, we send a datasheet with exact size and weight.

Dimensions and drawing

Drawings for three of the models. Dimensions in mm.

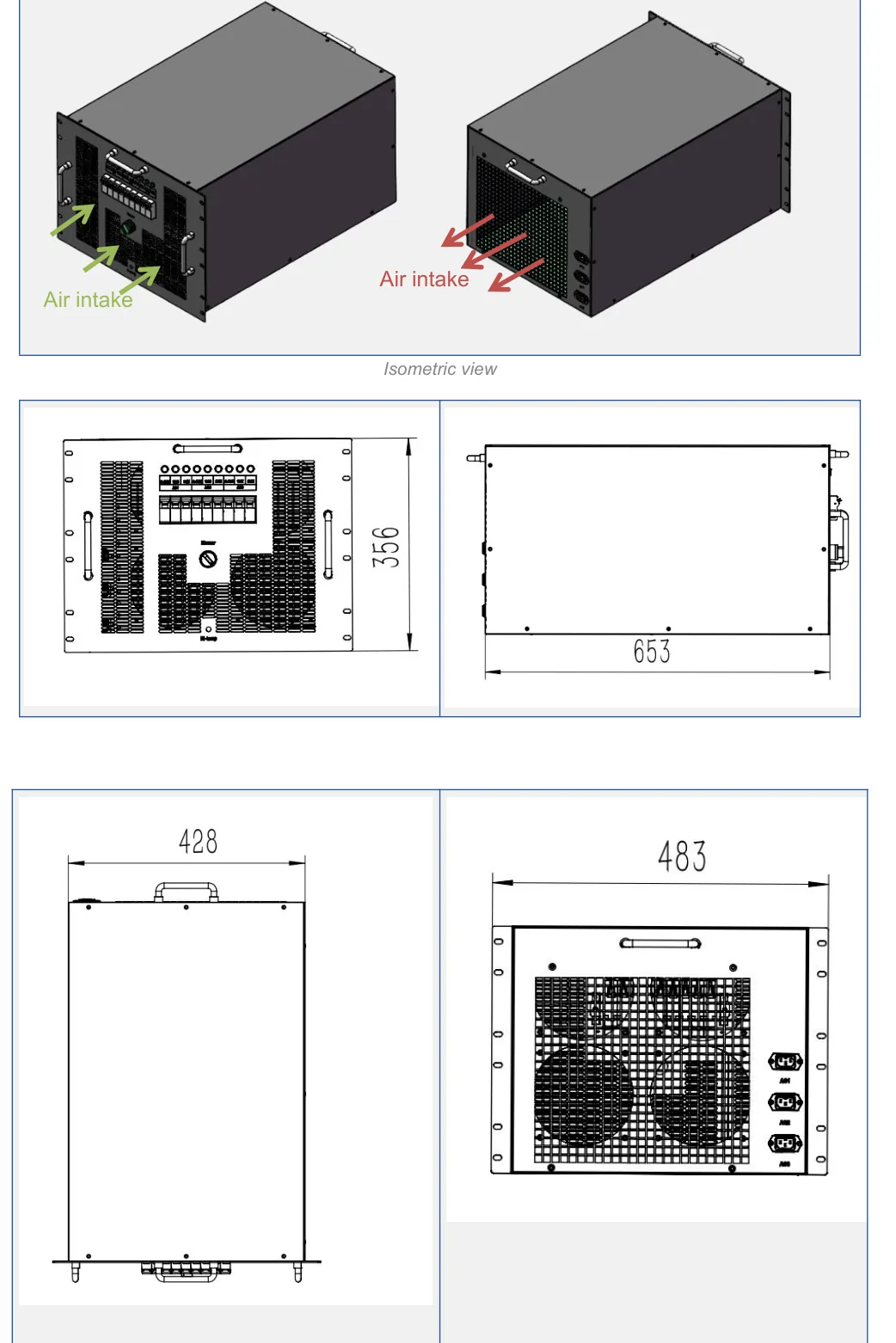

Dimension drawing RM-9.5
RM-9.5 (9.5 kW): isometric, front, side and top views.

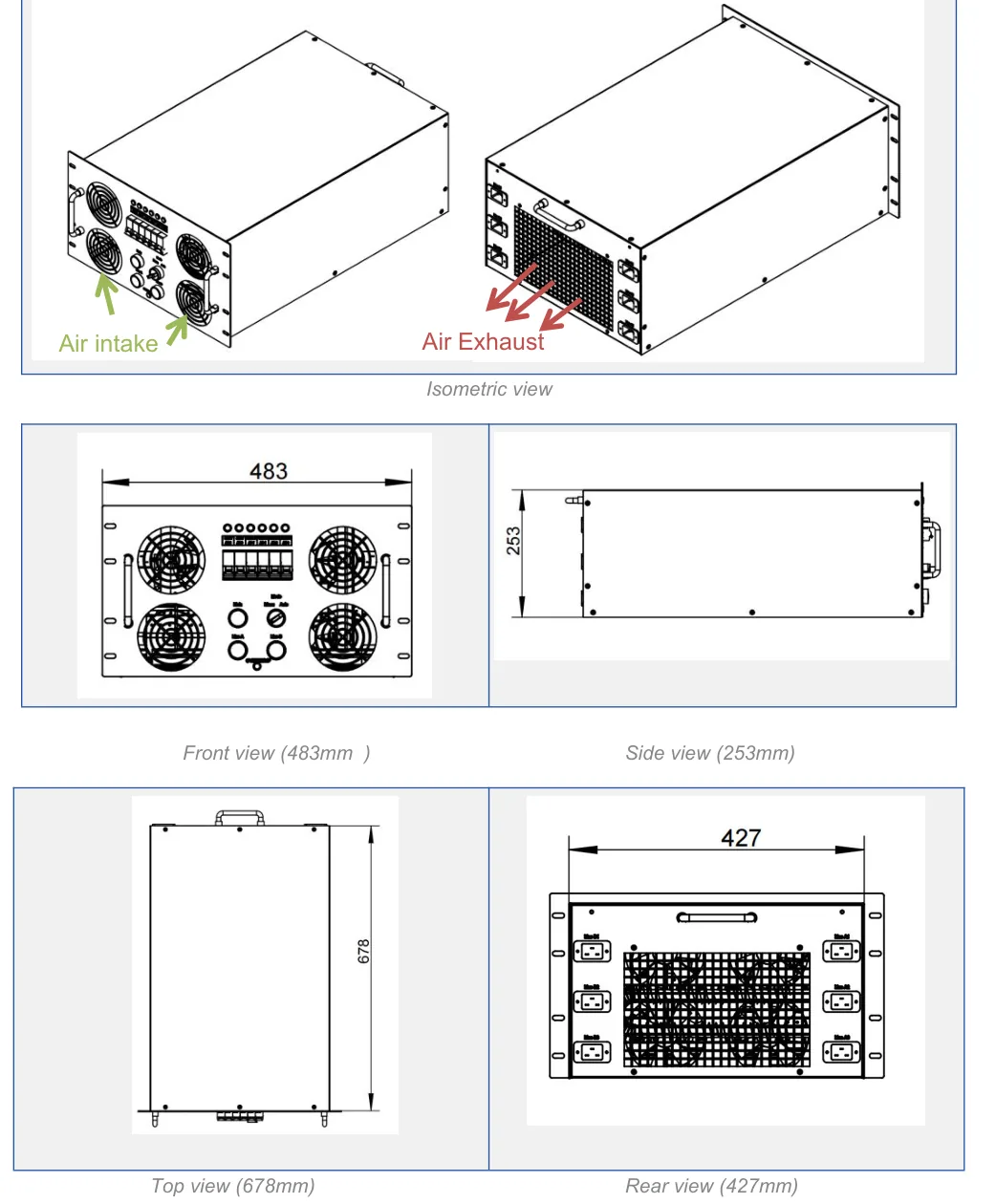

Dimension drawing RM-7D
RM-7D (7 kW, dual supply): isometric and views.

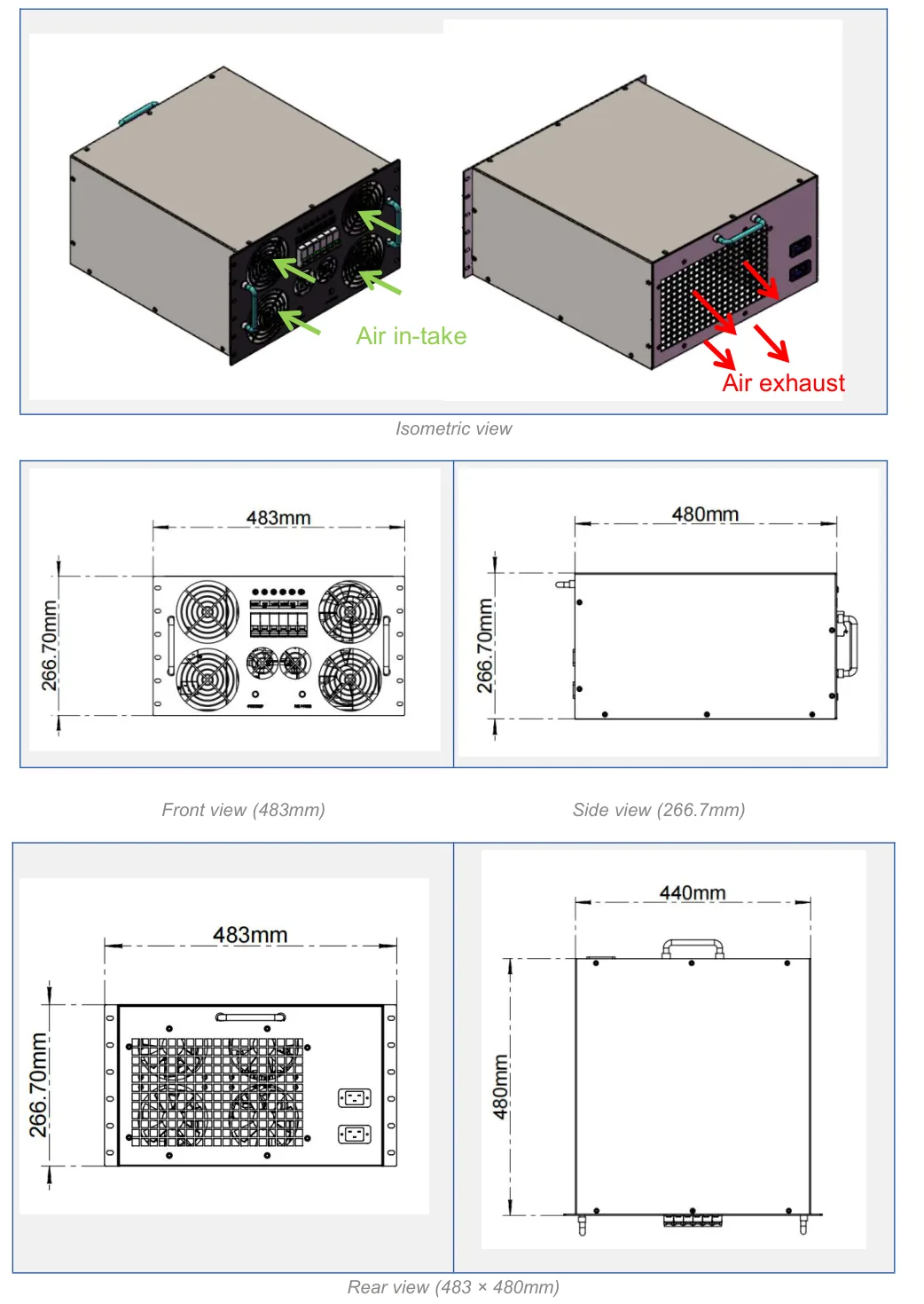

Dimension drawing RM-6
RM-6 (6 kW): isometric and views.
